Safeguard Your High Voltage Substations with Certified Passive Fire Protection

High-voltage (HV) substations, switchgear rooms, and cable basements form the backbone of South Africa's utility, mining, and industrial operations. Because electrical cables carry high fault currents and often run through interconnected trenches, shafts, and risers, an electrical arc or oil-filled equipment fire can rapidly propagate across an entire facility if penetrations and cables are left unprotected.

The stakes are not abstract. Unplanned substation downtime interrupts production, exposes staff to arc-flash and toxic smoke, and can trigger insurance underwriting penalties. The good news is that most of the propagation risk is preventable with accredited passive fire protection (PFP). If you are new to PFP, we recommend reading our companion article on the vital role of passive fire protection before continuing.

Why HV Substation Fires Pose a Unique Threat

Unlike a typical commercial building, a substation concentrates high-energy electrical equipment, oil-filled transformers, and densely bunched control and power cables into relatively small compartments. When a fault occurs, three things happen almost simultaneously:

• Rapid flame spread along cables: Bunched cables behave like a wick — once one cable ignites, flame propagates along the tray or trench to adjacent equipment.
• Chimney effect in risers: Vertical shafts and cable risers draw heat and smoke upwards at high velocity, bypassing floor-level detection.
• Loss of compartmentation: Every unsealed penetration through a fire-rated wall or slab becomes a path for fire and smoke into adjacent zones, control rooms and egress routes.

These factors combine to produce a fire that is fast-moving, smoke-heavy, and extremely difficult to contain with active suppression alone. Passive measures — applied correctly — buy the time needed for evacuation, isolation and emergency response.

1. Preventing Flame Propagation Along Electrical Cables

Lionize Group applies an asbestos-free, non-toxic, ready-to-use inorganic cable coating compound engineered specifically to halt flame spread along bunched power and control cables. When exposed to fire, the compound intumesces immediately — forming an insulating char layer over the cables that shields the substrate from extreme heat and flame.

• Horizontal Cable Runs: Applied for 2 metres in bunched cables running horizontally at intermittent intervals of 10 metres.
• Vertical Cable Risers & Shafts: Fully coated along the entire vertical run, as fire travels significantly faster vertically due to the chimney/draft effect.
• Entry/Exit Points & Criss-Crossings: Coated up to 2 metres on all sides at wall/floor entry points and cable tray intersections.
• High-Risk Industrial Zones: Essential for cables routed near high-heat equipment, transformer oil/lubricant spillage areas, or coal dust environments.

2. Transformer, Switchgear & Oil-Filled Equipment Fire Barriers

Oil-filled transformers and switchgear introduce an additional fire load that cable coatings alone cannot address. Lionize supplies and installs:

• Fire-rated separation walls between transformer bays and adjacent plant rooms.
• Bund walls and oil containment designed to limit pool-fire spread beneath transformers.
• Intumescent fire barriers and fire boards protecting structural steel and supporting equipment close to oil-filled assets.
• Fire-rated doors and screens to preserve compartmentation and egress routes in transformer yards and switch rooms.

These measures are most effective when designed alongside the facility's active systems (deluge, gas suppression, detection) — a combined active + passive approach is the only reliable way to contain an oil-fed fire. The principles are explained further in our article on passive fire protection in commercial and industrial structures.

3. Compartmentalisation & Penetration Sealing

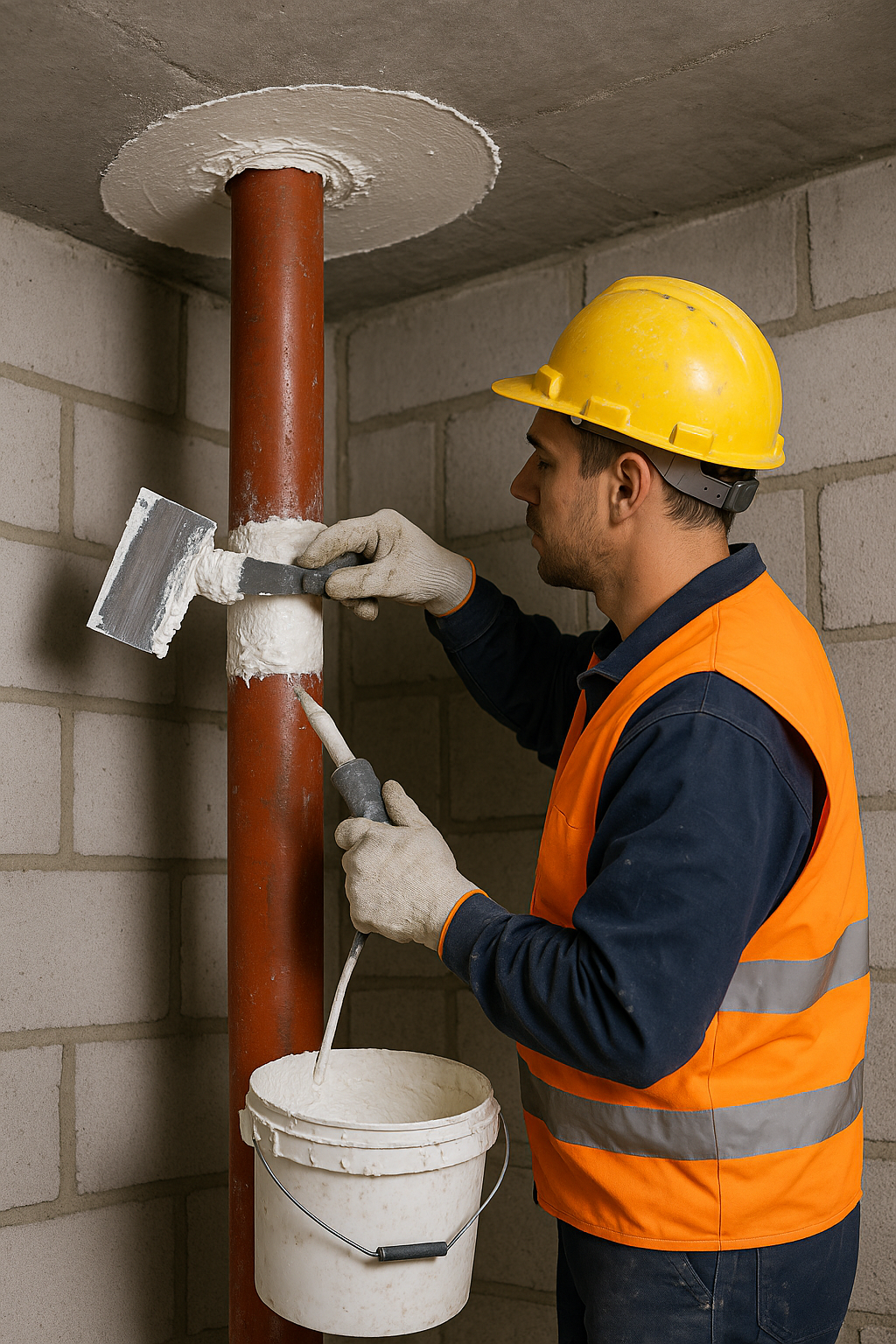

Every opening where cables, busbars, pipes, or HVAC ducts pass through a fire-rated wall or floor slab compromises the fire resistance of that barrier. Lionize supplies and installs tested penetration sealing systems — including intumescent seal bags, pipe collars, sleeves, mineral fibre barriers, and gypsum/acrylic fire-stopping compounds — to restore the full fire-resistance rating of your substation compartments.

Critically, these products carry no statutory rating on their own. They only achieve a fire-resistance rating when installed as part of a tested system, in accordance with the manufacturer's tested detail and the National Building Regulations. This is why installation by an accredited contractor and a formal Certificate of Conformance matter as much as the product itself.

4. Control Rooms, Cable Basements & Battery Rooms

Critical ancillary spaces in a substation frequently receive less fire-protection attention than the main plant — yet a fire in a control room or DC battery room can disable protection, SCADA and communications for the whole site. Lionize addresses these spaces with:

• Fire-rated doors and glazed screens protecting control and protection relay rooms.

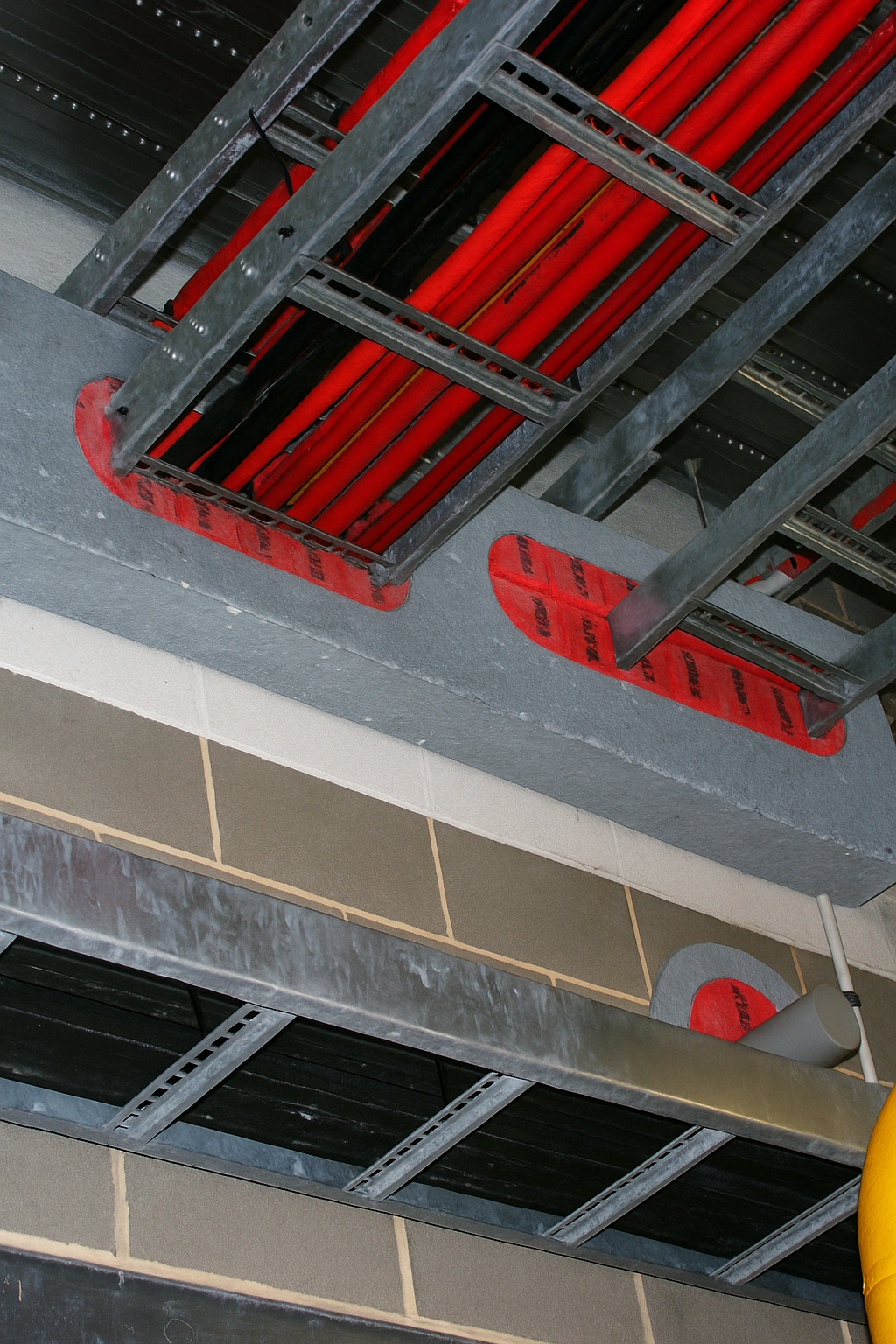

• Cable transit seals at basement and trench entries, preventing smoke migration into occupied areas.
• Intumescent coatings on structural steel supporting battery racks and control equipment.

The True Cost of an Unprotected Substation

Passive fire protection is often framed as a compliance cost — but the economics of doing nothing are far more significant. An uncontained substation fire typically triggers:

• Extended downtime: Replacement of switchgear, transformers and cable runs can take weeks or months, with daily production losses that dwarf the cost of PFP.
• Insurance exposure: Underwriters increasingly require evidence of compliant fire compartmentation and cable protection. Missing or undocumented PFP can lead to claim disputes or premium loading.
• Safety and environmental risk: Arc-flash, toxic smoke and oil-runoff create serious injury and environmental liability.
• Regulatory non-compliance: Failure to maintain fire-rated separation can constitute non-compliance under SANS 10400-T and related standards.

Maintenance, Inspection & Lifecycle Management

Passive fire protection is not a "fit and forget" item. Cable coatings, seals and fire doors are exposed to heat, vibration, moisture and mechanical damage over the life of the plant. We recommend a documented annual inspection covering:

• Visual integrity of intumescent cable coatings (thickness, cracking, delamination).
• Condition and completeness of penetration seals after any new cable pulls or maintenance work.
• Operation and alignment of fire doors and screens.
• Updated as-built documentation for insurance and compliance audits.

Where refurbishment or new cable installations have breached existing seals, re-sealing to the original tested detail is essential — a single unsealed penetration can defeat an entire compartment.

Accredited Installation & Certificates of Conformance

Fire-stopping materials hold no statutory rating on their own; they must be installed as a certified system in accordance with National Building Codes and SABS standards. Lionize Group provides free technical product advice, turnkey supply and application, pressure/integrity testing where required, and issues a formal Certificate of Conformance upon completion.

Our team works around planned outages and live-substation constraints, and can coordinate with your electrical contractor, insurer and fire engineer. For a broader view of the compliance framework, see our compliance and check service.
